Description
12 Ton AC with Electric Heat 220/3
Capacity
Heating 100,000 BTU
Cooling 145,000 BTU
Power Supply
220V 3ph 60Hz

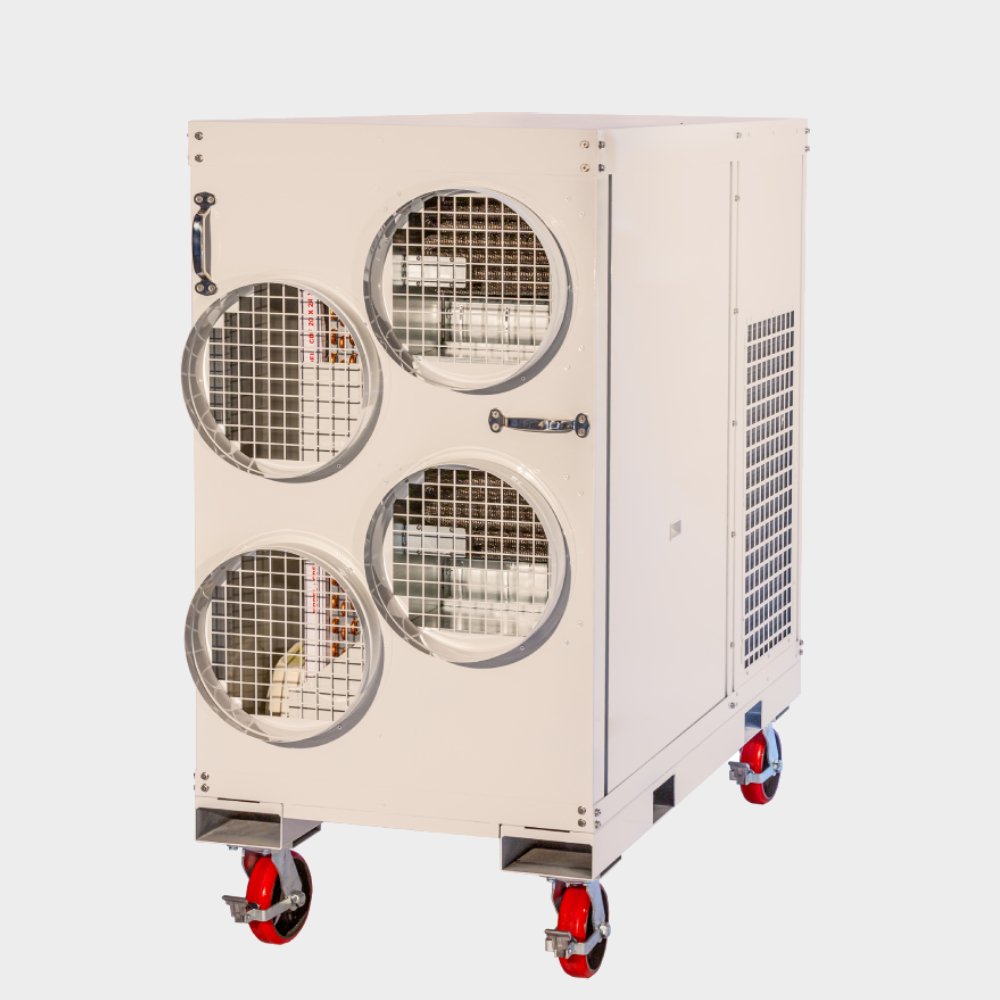

Airrex AHSC-140R portable air conditioner with two 15kw electric heaters, operates in air temperatures from 65°to 113°F for cool mode. This portable air conditioner with electric heat utilizes eco-friendly R-454B refrigerant and may require a fresh air supply for proper operation. Includes two pleated filters that are 20”x24”x2” located behind a quick access panel for easy maintenance. Thermostatically protected compressor includes high and low-pressure warnings has 145,000 BTU cooling feature and 100,000 BTU heating feature. Two 16″ supply flanges, two 16″ return flanges, and a 20″ exhaust flange. The AHSC-140P has a built-in condensate pump. 1 Year Warranty. 3 Year compressor warranty. Two electrical options, 220V 3 phase or 486V 3 phase.
Downloads
Specifications
| Weight | 1424 lbs |
|---|---|
| Dimensions | 35 × 77 × 69 in |
| Cooling Capacity | 145,000 BTU |
| Heating Capacity | 100,000 BTU |
| Power Supply | 220V 3ph 60Hz |
| Current Consumption (Amps) | 65.1 cool / 81.5 heat |
| Brand | Airrex |
